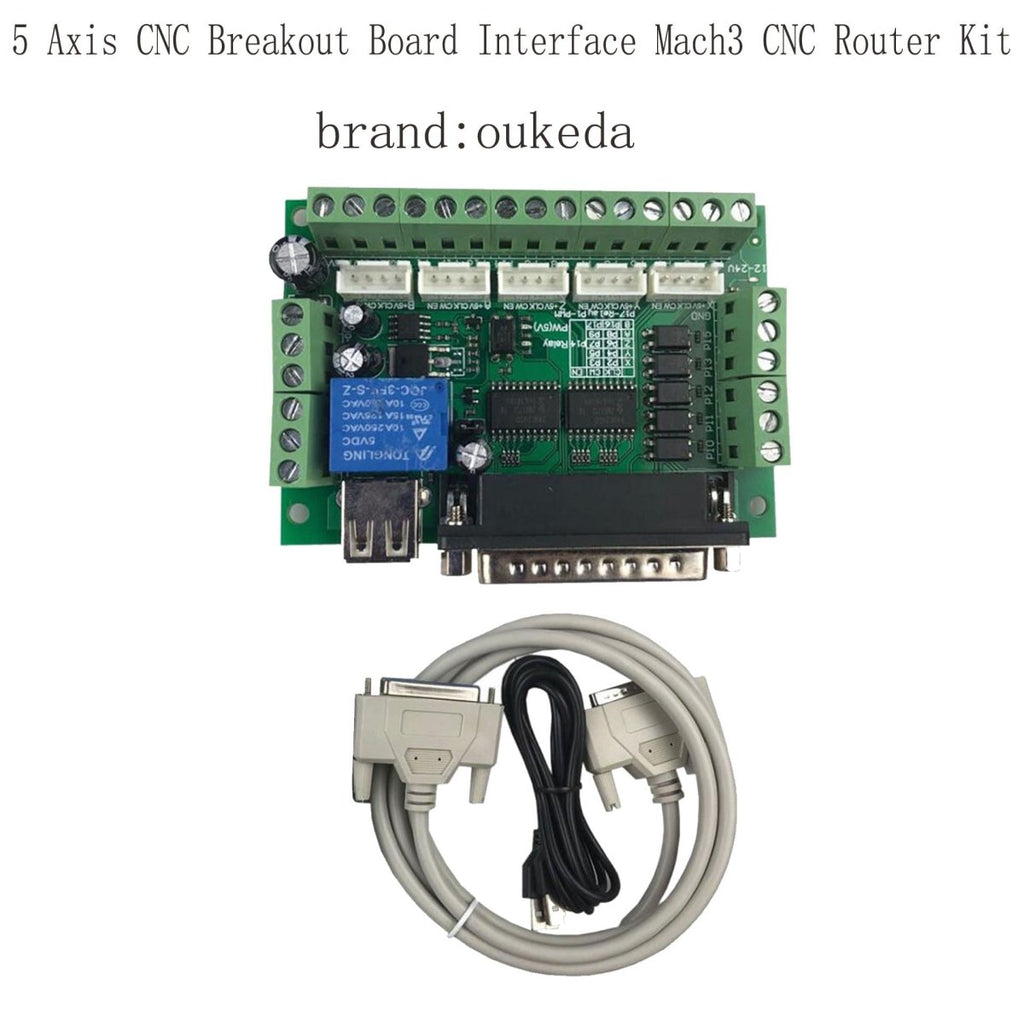

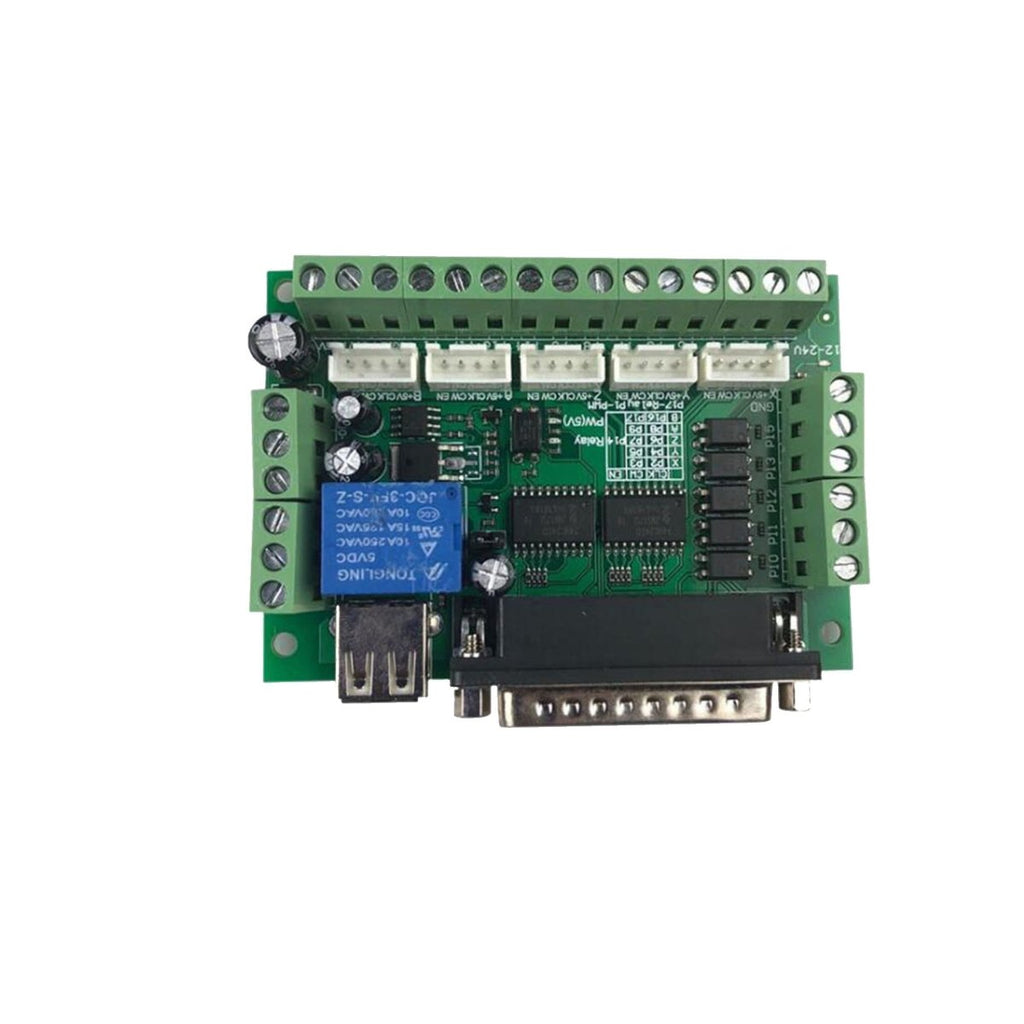

CNC Breakout Board 5 Axis: Mach3 Interface Controller Kit for CNC Machines

About This Item

• 5-Axis CNC Control Capability – Supports up to 5-axis stepper motor drivers, ideal for advanced CNC routing, milling, and engraving applications.
• Mach3 & LinuxCNC Compatible – Fully compatible with Mach3 and LinuxCNC (EMC2) software for precise and reliable machine control.
• Enhanced System Protection – Features opto-isolated signal inputs and a separated USB/peripheral power supply to protect your computer and control system from interference or damage.
• Versatile Input Interfaces – Includes 5 input ports for limit switches, emergency stop, tool alignment, and other custom CNC controls.
• Wide Voltage Support (12–24V) – Stable operation across a broad voltage range with built-in reverse polarity protection for safer installation.
• Integrated Relay Control Output – Control external devices such as spindle motors, air pumps, or water pumps directly from the board.
• 0–10V Analog Output – Enables precise spindle speed control when connected to an inverter (VFD).
• Universal Driver Compatibility – Works with most 2-phase microstep stepper drivers available on the market.

Product Details

• Type: CNC Breakout Board Interface
• Axis Support: Up to 5 Axis
• Software Compatibility: Mach3, LinuxCNC (EMC2)
• Input Voltage: 12V–24V DC
• Control Interface: Parallel Port
• Isolation: Opto-Isolated Signals
• Analog Output: 0–10V (Spindle Speed Control)
• Relay Output: Yes (for spindle/pump control)
• Input Ports: 5 (Limit, E-Stop, etc.)

What’s Included

• 1 × 5-Axis CNC Breakout Board

Perfect For

• CNC router and milling machine builders
• DIY CNC projects and upgrades
• Precision engraving and automation systems
